Scraping images with Python and Scrapy

Since this is a computer vision and OpenCV blog, you might be wondering: “Hey Adrian, why in the world are you talking about scraping images?”

Great question.

The reason is because image acquisition is one of the most under-talked about subjects in the computer vision field!

Think about it. Whether you’re leveraging machine learning to train an image classifier, building an image search engine to find relevant images in a collection of photos, or simply developing your own hobby computer vision application — it all starts with the images themselves.

And where do these images come from?

Well, if you’re lucky, you might be utilizing an existing image dataset like CALTECH-256, ImageNet, or MNIST.

But in the cases where you can’t find a dataset that suits your needs (or when you want to create your own custom dataset), you might be left with the task of scraping and gathering your images. While scraping a website for images isn’t exactly a computer vision technique, it’s still a good skill to have in your tool belt.

In the remainder of this blog post, I’ll show you how to use the Scrapy framework and the Python programming language to scrape images from webpages.

Specifically, we’ll be scraping ALL Time.com magazine cover images. We’ll then use this dataset of magazine cover images in the next few blog posts as we apply a series of image analysis and computer vision algorithms to better explore and understand the dataset.

Installing Scrapy

I actually had a bit of a problem installing Scrapy on my OSX machine — no matter what I did, I simply could not get the dependencies installed properly (flashback to trying to install OpenCV for the first time as an undergrad in college).

After a few hours of tinkering around without success, I simply gave up and switched over to my Ubuntu system where I used Python 2.7. After that, installation was a breeze.

The first thing you’ll need to do is install a few dependencies to help Scrapy parse documents (again, keep in mind that I ran these commands on my Ubuntu system):

$ sudo apt-get install libffi-dev
$ sudo apt-get install libssl-dev
$ sudo apt-get install libxml2-dev libxslt1-dev

Note: This next step is optional, but I highly suggest you do it.

I then used virtualenv and virtualenvwrapper to create a Python virtual environment called

scrapy

  to keep my system

site-packages

  independent and sequestered from the new Python environment I was about to setup. Again, this is optional, but if you’re a

virtualenv

  user, there’s no harm in doing it:

$ mkvirtualenv scrapy

In either case, now we need to install Scrapy along with Pillow, which is a requirement if you plan on scraping actual binary files (such as images):

$ pip install pillow
$ pip install scrapy

Scrapy should take a few minutes to pull down its dependencies, compile, and and install.

You can test that Scrapy is installed correctly by opening up a shell (accessing the

scrapy

  virtual environment if necessary) and trying to import the

scrapy

  library:

$ python
>>> import scrapy
>>>

If you get an import error (or any other error) it’s likely that Scrapy was not linked against a particular dependency correctly. Again, I’m no Scrapy expert so I would suggest consulting the docs or posting on the Scrapy community if you run into problems.

Creating the Scrapy project

If you’ve used the Django web framework before, then you should feel right at home with Scrapy — at least in terms of project structure and the Model-View-Template pattern; although, in this case it’s more of a Model-Spider pattern.

To create our Scrapy project, just execute the following command:

$ scrapy startproject timecoverspider

After running the command you’ll see a

timecoverspider

  in your current working directory. Changing into the

timecoverspider

 directory, you’ll see the following Scrapy project structure:

|--- scrapy.cfg
|    |--- timecoverspider
|    |    |--- __init__.py
|    |    |--- items.py
|    |    |--- pipelines.py
|    |    |--- settings.py
|    |    |--- spiders
|    |    |    |---- __init__.py
|    |    |    |---- coverspider.py # (we need to manually create this file)

In order to develop our Time magazine cover crawler, we’ll need to edit the following files two files:

items.py

  and

settings.py

 . We’ll also need to create our customer spider,

coverspider.py

  inside the

spiders

  directory

Let’s start with the

settings.py

  file which only requires to quick updates. The first is to find the

ITEMS_PIPELINE

  tuple, uncomment it (if it’s commented out), and add in the following setting:

# Configure item pipelines
# See http://scrapy.readthedocs.org/en/latest/topics/item-pipeline.html
ITEM_PIPELINES = {
   'scrapy.contrib.pipeline.images.FilesPipeline': 1,
}

This setting will activate Scrapy’s default file scraping capability.

The second update can be appended to the bottom of the file. This value,

FILES_STORE

 , is simply the path to the output directory where the download images will be stored:

FILES_STORE = "/home/adrian/projects/time_magazine/timecoverspider/output"

Again, feel free to add this setting to the bottom of the

settings.py

  file — it doesn’t matter where in the file you put it.

Now we can move on to

items.py

 , which allows us to define a data object model for the webpages our spider crawls:

# import the necessary packages
import scrapy

class MagazineCover(scrapy.Item):
	title = scrapy.Field()
	pubDate = scrapy.Field()
	file_urls = scrapy.Field()
	files = scrapy.Field()

The code here is pretty self-explanatory. On Line 2 we import our

scrapy

  package, followed by defining the

MagazineCover

  class on Line 4. This class encapsulates the data we’ll scrape from each of the

time.com

  magazine cover webpages. For each of these pages we’ll return a

MagazineCover

  object which includes:

• title

   : The title of the current Time magazine issue. For example, this could be “Code Red”, “The Diploma That Works”, “The Infinity Machine”, etc.

• pubDate

   : This field will store the date the issue was published on in

  year-month-day

    format.

• file_urls

   : The

  file_urls

    field is a very important field that you must explicitly define to scrape binary files (whether it’s images, PDFs, mp3s), etc. from a website. You cannot name this variable differently and must be within your

  Item

    sub-class.

• files

   : Similarly, the

  files

    field is required when scraping binary data. Do not name it anything different. For more information on the structure of the

  Item

    sub-class intended to save binary data to disk, be sure to read this thread on Scrapy Google Groups.

Now that we have our settings updated and created our data model, we can move on to the hard part — actually implementing the spider to scrape Time for cover images. Create a new file in the

spiders

  directory, name it

coverspider.py

 , and we’ll get to work:

# import the necessary packages
from timecoverspider.items import MagazineCover
import datetime
import scrapy

class CoverSpider(scrapy.Spider):
	name = "pyimagesearch-cover-spider"
	start_urls = ["http://search.time.com/results.html?N=46&Ns=p_date_range|1"]

Lines 2-4 handle importing our necessary packages. We’ll be sure to import our

MagazineCover

  data object,

datetime

  to parse dates from the Time.com website, followed by

scrapy

  to obtain access to our actual spidering and scraping tools.

From there, we can define the

CoverSpider

  class on Line 6, a sub-class of

scrapy.Spider

 . This class needs to have two pre-defined values:

• name

   : The name of our spider. The

  name

    should be descriptive of what the spider does; however, don’t make it too long, since you’ll have to manually type it into your command line to trigger and execute it.

• start_urls

   : This is a list of the seed URLs the spider will crawl first. The URL we have supplied here is the main page of the Time.com cover browser.

Every Scrapy spider is required to have (at a bare minimum) a

parse

  method that handles parsing the

start_urls

 . This method can in turn yield other requests, triggering other pages to be crawled and spidered, but at the very least, we’ll need to define our

parse

  function:

# import the necessary packages
from timecoverspider.items import MagazineCover
import datetime
import scrapy

class CoverSpider(scrapy.Spider):
	name = "pyimagesearch-cover-spider"
	start_urls = ["http://search.time.com/results.html?N=46&Ns=p_date_range|1"]

	def parse(self, response):
		# let's only gather Time U.S. magazine covers
		url = response.css("div.refineCol ul li").xpath("a[contains(., 'TIME U.S.')]")
		yield scrapy.Request(url.xpath("@href").extract_first(), self.parse_page)

One of the awesome aspects of Scrapy is the ability to traverse the Document Object Model (DOM) using simple CSS and XPath selectors. On Line 12 we traverse the DOM and grab the

href

  (i.e. URL) of the link that contains the text

TIME U.S.

 . I have highlighted the “TIME U.S.” link in the screenshot below:

I was able to obtain this CSS selector by using the Chrome browser, right clicking on the link element, selecting Inspect Element”, and using Chrome’s developer tools to traverse the DOM:

Now that we have the URL of the link, we yield a

Request

  to that page (which is essentially telling Scrapy to “click that link”), indicating that the

parse_page

  method should be used to handle parsing it.

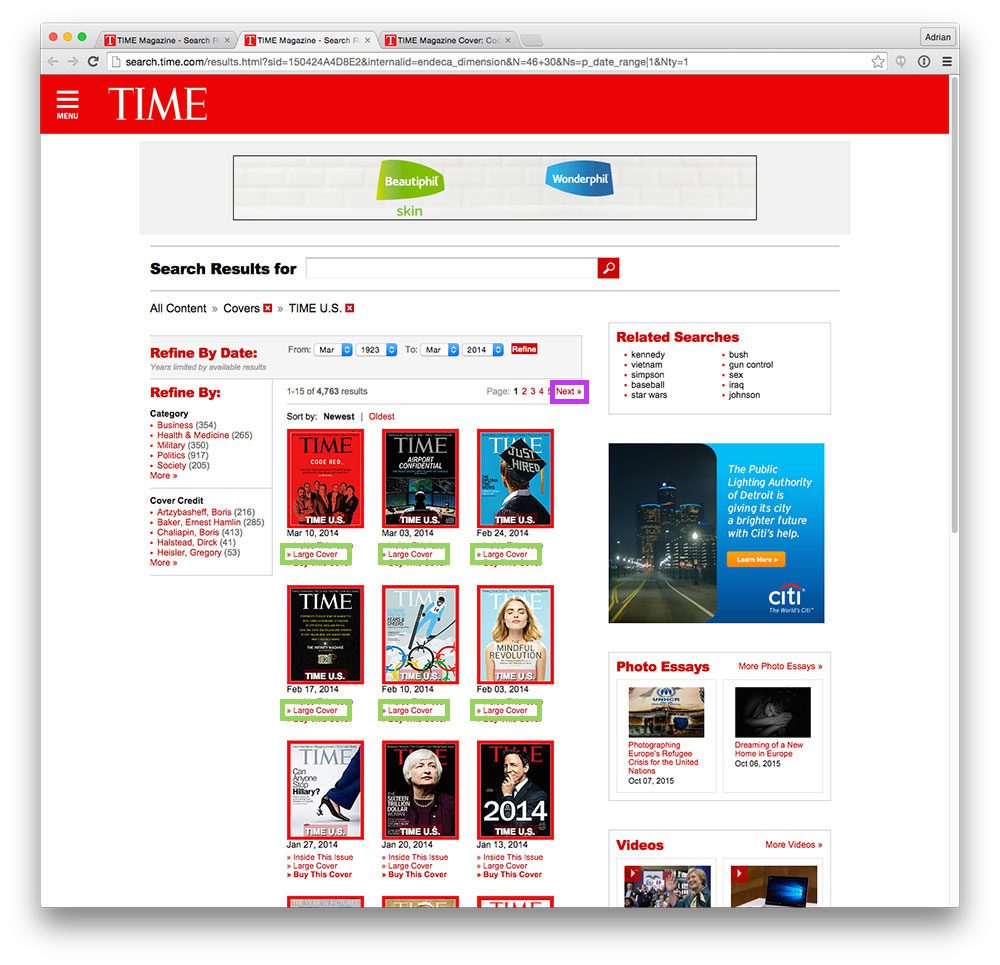

A screenshot of the “TIME U.S.” page can be seen below:

We have two primary goals in parsing this page:

• Goal #1: Grab the URLs of all links with the text “Large Cover” (highlighted in green in the figure above).
• Goal #2: Once we have grabbed all the “Large Cover” links, we need to click the “Next” button (highlighted in purple), allowing us to follow the pagination and parse all issues of Time and grab their respective covers.

Below follows our implementation of the

parse_page

  method to accomplish exactly this:

# import the necessary packages
from timecoverspider.items import MagazineCover
import datetime
import scrapy

class CoverSpider(scrapy.Spider):
	name = "pyimagesearch-cover-spider"
	start_urls = ["http://search.time.com/results.html?N=46&Ns=p_date_range|1"]

	def parse(self, response):
		# let's only gather Time U.S. magazine covers
		url = response.css("div.refineCol ul li").xpath("a[contains(., 'TIME U.S.')]")
		yield scrapy.Request(url.xpath("@href").extract_first(), self.parse_page)

	def parse_page(self, response):
		# loop over all cover link elements that link off to the large
		# cover of the magazine and yield a request to grab the cove
		# data and image
		for href in response.xpath("//a[contains(., 'Large Cover')]"):
			yield scrapy.Request(href.xpath("@href").extract_first(),
				self.parse_covers)

		# extract the 'Next' link from the pagination, load it, and
		# parse it
		next = response.css("div.pages").xpath("a[contains(., 'Next')]")
		yield scrapy.Request(next.xpath("@href").extract_first(), self.parse_page)

We start off on Line 19 by looping over all link elements that contain the text

Large Cover

 . For each of these links, we “click” it, and yield a request to that page using the

parse_covers

  method (which we’ll define in a few minutes).

Then, once we have generated requests to all cover pages, it’s safe to click the

Next

  button and use the same

parse_page

  method to extract data from the following page as well — this process is repeated until we have exhausted the pagination of magazine issues and there are no further pages in the pagination to process.

The last step is to extract the

title

 ,

pubDate

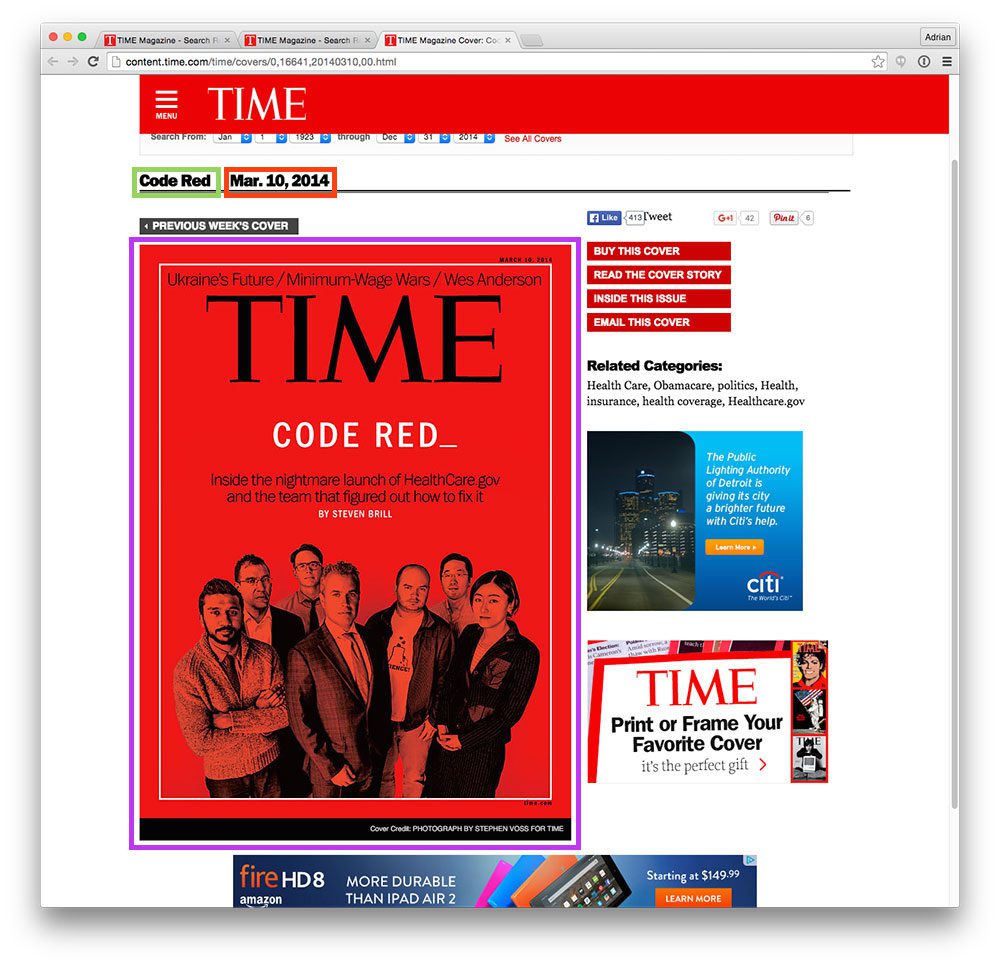

 , and store the Time cover image itself. An example screenshot of a cover page from Time can be seen below:

Here I have highlighted the issue name in green, the publication date in red, and the cover image itself in purple. All that’s left to do is define the

parse_covers

  method to extract this data:

# import the necessary packages
from timecoverspider.items import MagazineCover
import datetime
import scrapy

class CoverSpider(scrapy.Spider):
	name = "pyimagesearch-cover-spider"
	start_urls = ["http://search.time.com/results.html?N=46&Ns=p_date_range|1"]

	def parse(self, response):
		# let's only gather Time U.S. magazine covers
		url = response.css("div.refineCol ul li").xpath("a[contains(., 'TIME U.S.')]")
		yield scrapy.Request(url.xpath("@href").extract_first(), self.parse_page)

	def parse_page(self, response):
		# loop over all cover link elements that link off to the large
		# cover of the magazine and yield a request to grab the cove
		# data and image
		for href in response.xpath("//a[contains(., 'Large Cover')]"):
			yield scrapy.Request(href.xpath("@href").extract_first(),
				self.parse_covers)

		# extract the 'Next' link from the pagination, load it, and
		# parse it
		next = response.css("div.pages").xpath("a[contains(., 'Next')]")
		yield scrapy.Request(next.xpath("@href").extract_first(), self.parse_page)

	def parse_covers(self, response):
		# grab the URL of the cover image
		img = response.css(".art-cover-photo figure a img").xpath("@src")
		imageURL = img.extract_first()

		# grab the title and publication date of the current issue
		title = response.css(".content-main-aside h1::text").extract_first()
		year = response.css(".content-main-aside h1 time a::text").extract_first()
		month = response.css(".content-main-aside h1 time::text").extract_first()[:-2]

		# parse the date
		date = "{} {}".format(month, year).replace(".", "")
		d = datetime.datetime.strptime(date, "%b %d %Y")
		pub = "{}-{}-{}".format(d.year, str(d.month).zfill(2), str(d.day).zfill(2))

		# yield the result
		yield MagazineCover(title=title, pubDate=pub, file_urls=[imageURL])

Just as the other parse methods, the

parse_covers

  method is also straightforward. Lines 30 and 31 extract the URL of the cover image.

Lines 33 grabs the title of the magazine issue, while Lines 35 and 36 extract the publication year and month.

However, the publication date could use a little formatting — let’s create a consisting formatting in

year-month-day

 . While it’s not entirely obvious at this moment why this date formatting is useful, it will be very obvious in next week’s post when we actually perform a temporal image analysis on the magazine covers themselves.

Finally, Line 44 yields a

MagazineCover

  object including the

title

 ,

pubDate

 , and

imageURL

  (which will be downloaded and stored on disk).

Running the spider

To run our Scrapy spider to scrape images, just execute the following command:

$ scrapy crawl pyimagesearch-cover-spider -o output.json

This will kick off the image scraping process, serializing each

MagazineCover

  item to an output file,

output.json

 . The resulting scraped images will be stored in

full

 , a sub-directory that Scrapy creates automatically in the

output

  directory that we specified via the

FILES_STORE

  option in

settings.py

  above.

Below follows a screenshot of the image scraping process running:

On my system, the entire scrape to grab all Time magazine covers using Python + Scrapy took a speedy 2m 23s — not bad for nearly 4,000 images!

Our complete set of Time magazine covers

Now that our spider has finished scraping the Time magazine covers, let’s take a look at our

output.json

  file:

To inspect them individually, let’s fire up a Python shell and see what we’re working with:

$ python
>>> import json
>>> data = open("output.json").read()
>>> data = json.loads(data)
>>> len(data)
3969

As we can see, we have scraped a total of 3,969 images.

Each entry in the

data

  list is a dictionary, which essentially maps to our

MagazineCover

  data model:

>>> data[0]
{u'files': [{u'url': u'http://img.timeinc.net/time/magazine/archive/covers/2014/1101140113_600.jpg', u'path': u'full/78a2264fb6103aaf20ff13982a09cb182294709d.jpg', u'checksum': u'02a6b4d22402fd9d5642535bea950c5f'}], u'file_urls': [u'http://img.timeinc.net/time/magazine/archive/covers/2014/1101140113_600.jpg'], u'pubDate': u'2014-01-13', u'title': u'2014: The Year Ahead '}
>>> data[0].keys()
[u'files', u'file_urls', u'pubDate', u'title']

We can easily grab the path to the Time cover image like this:

>>> print("Title: {}\nFile Path: {}".format(data[0]["title"], data[0]["files"][0]["path"]))
Title: 2014: The Year Ahead
File Path: full/78a2264fb6103aaf20ff13982a09cb182294709d.jpg

Inspecting the

output/full

  directory we can see we have our 3,969 images:

$ cd output/full/
$ ls -l *.jpg | wc -l
    3969

So now that we have all of these images, the big question is: “What are we going to do with them?!”

I’ll be answering that question over the next few blog posts. We’ll be spending some time analyzing this dataset using computer vision and image processing techniques, so don’t worry, your bandwidth wasn’t wasted for nothing!

Note: If Scrapy is not working for you (or if you don’t want to bother setting it up), no worries — I have included the

output.json

  and raw, scraped

.jpg

  images in the source code download of the post found at the bottom of this page. You’ll still be able to follow along through the upcoming PyImageSearch posts without a problem.

Summary

In this blog post we learned how to use Python scrape all cover images of Time magazine. To accomplish this task, we utilized Scrapy, a fast and powerful web scraping framework. Overall, our entire spider file consisted of less than 44 lines of code which really demonstrates the power and abstraction behind the Scrapy libray.

So now that we have this dataset of Time magazine covers, what are we going to do with them?

Well, this is a computer vision blog after all — so next week we’ll start with a visual analytics project where we perform a temporal investigation of the cover images. This is a really cool project and I’m super excited about it!

Be sure to sign up for PyImageSearch newsletter using the form at the bottom of this post — you won’t want to miss the followup posts as we analyze the Time magazine cover dataset!

Downloads:

The post Scraping images with Python and Scrapy appeared first on PyImageSearch.
